Why Datasheets Never Tell You the Real Reason Hardware Fails — And How to Decode the Hidden Constraints

Understanding the Design Logic Behind Motherboards, CPUs, Memory, SSD, and NIC Manufacturers

Engineers often ask a frustrating question:

“Why doesn’t the datasheet just tell me the real reason something fails?”

Whether it’s a CPU refusing to train memory, an NVMe SSD disappearing under load, or a NIC dropping packets during ASPM transitions—these issues rarely appear anywhere in official technical documents.

And the truth is simple:

Datasheets are not written for real-world failure scenarios. They are written for controlled, ideal conditions inside the manufacturer’s lab.

This article breaks down the hidden constraints behind component design and explains how to interpret datasheets like a hardware manufacturer, instead of a buyer.

It also reveals how companies like Shenzhen Angxun Technology uncover these unspoken limits during pre-validation and compatibility testing.

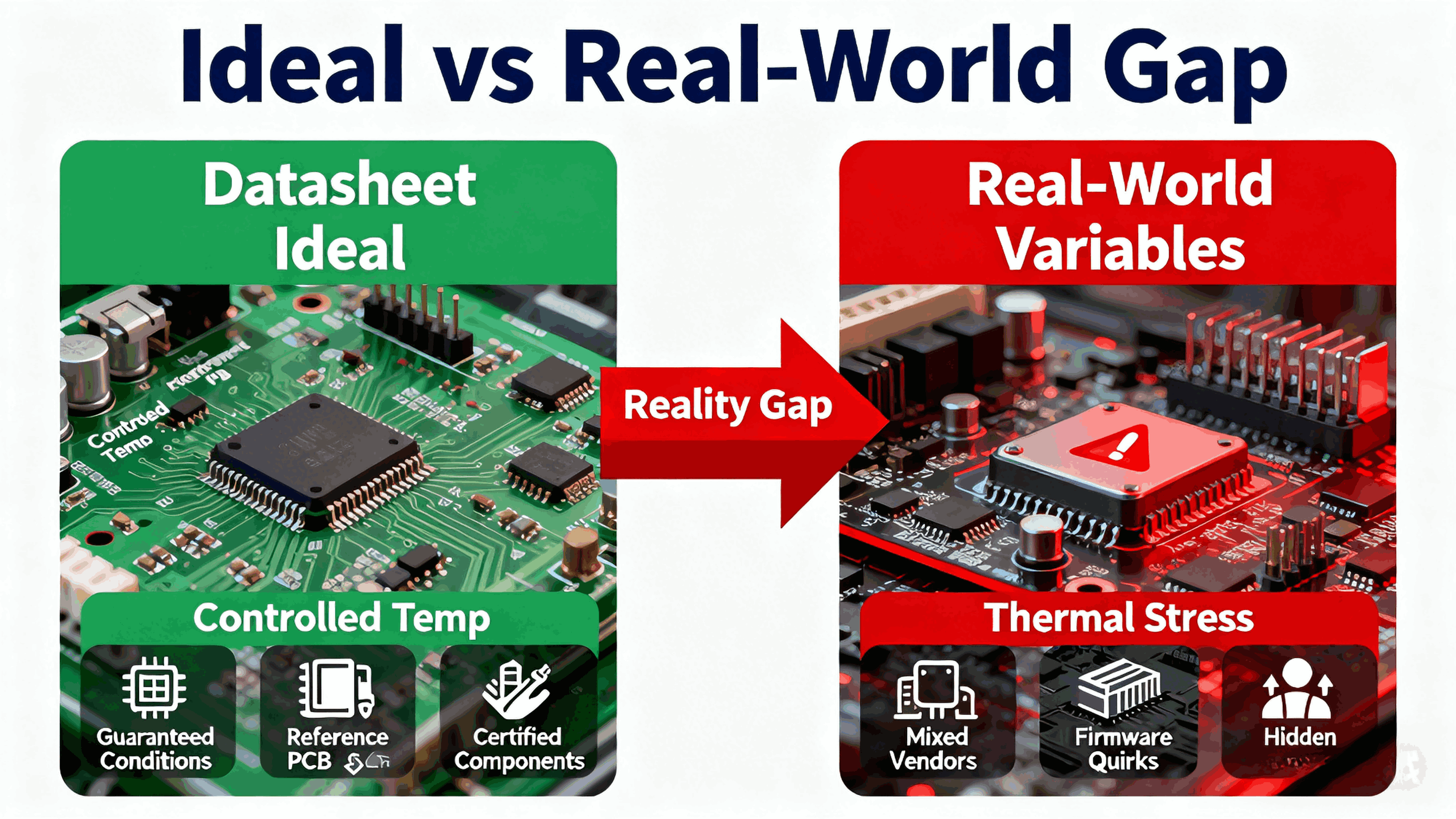

1. Datasheets Describe the “Legal Envelope,” Not Real-World Behavior

Every datasheet is built around one concept:

Guaranteed operation under controlled, ideal conditions.

This means:

• Standardized temperature range

• Reference PCB layout

• Reference power delivery

• Vendor-certified memory or SSD list

• Clean signal integrity

• Correct BIOS/microcode configuration

But real systems rarely operate under these textbook conditions.

Example:

A CPU might “support DDR5–5200,” but only with:

• 1DPC (one DIMM per channel)

• Specific DRAM vendors

• Certain motherboard trace lengths

• Updated AGESA firmware

None of this nuance appears in the datasheet.

2. Why Datasheets Avoid Listing Real Failure Modes

You might think vendors hide failure reasons to avoid embarrassing disclosures.

But the actual design logic is more complex:

Reason 1 — Too many interacting variables

A single failure may involve simultaneous factors:

• CPU stepping

• DRAM timing table

• BIOS microcode

• PCB impedance

• Power noise

• SSD firmware state

• PCIe topology

Datasheets can’t possibly enumerate all permutations.

Reason 2 — Failure modes are platform-specific

A chipset vendor (Intel, AMD) cannot predict:

• Your motherboard’s PCB stack-up

• How your VRM behaves under load

• Your corner-case BOM combinations

• SSD / NIC brands installed by the user

So datasheets deliberately remain generic.

Reason 3 — Real failure causes change every quarter

New BIOS, new firmware, new stepping, new microcode…

If vendors described every fail mode, datasheets would change weekly.

Reason 4 — Legal and marketing constraints

Datasheet wording is carefully controlled to avoid:

• Warranty liability

• Performance disputes

• Misinterpretation in media reviews

Therefore, vendors only list minimum guarantees, not real-world risk zones.

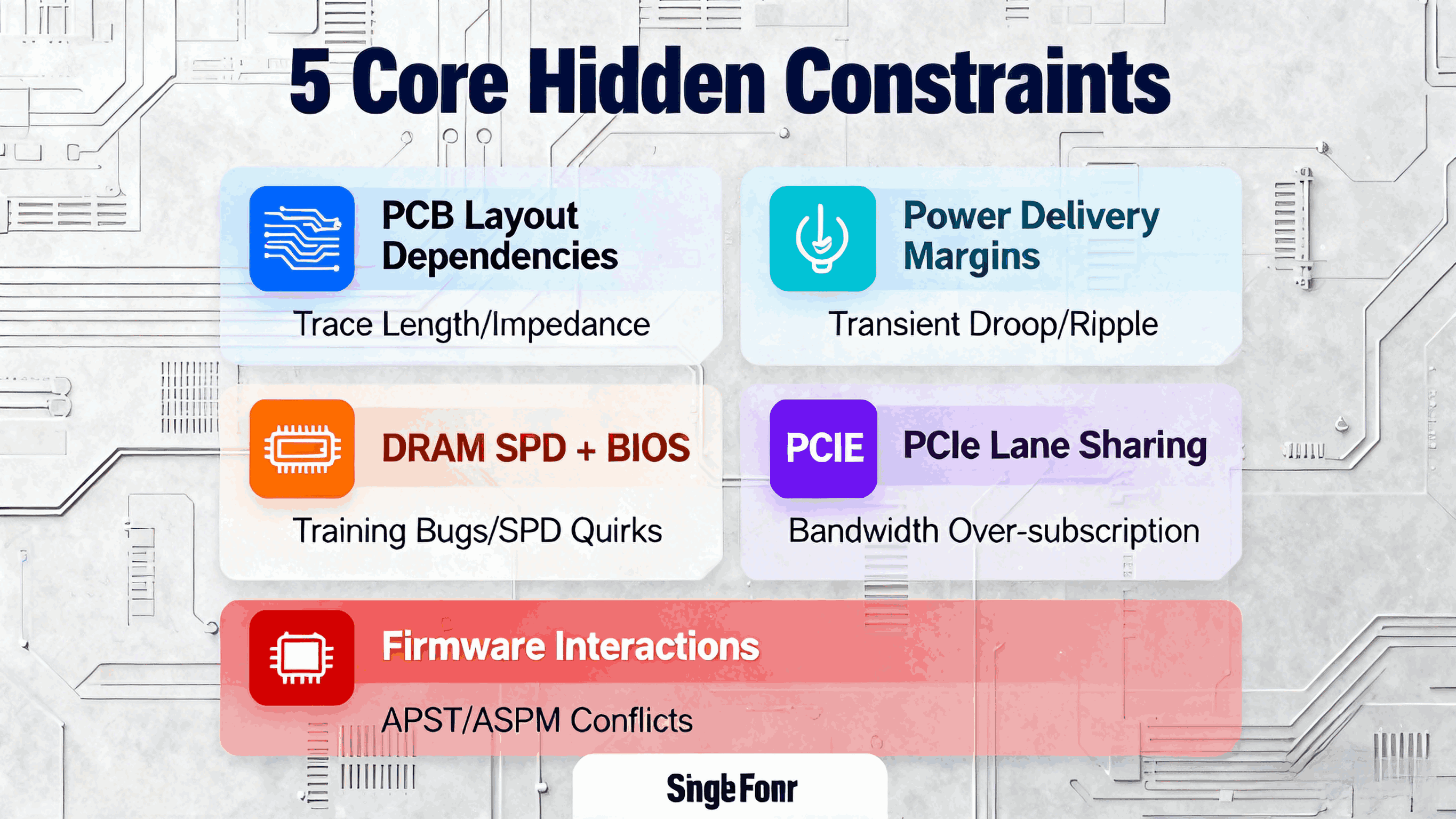

3. How to Decode the “Hidden Conditions” Behind Datasheets

Manufacturers like Angxun reverse-engineer datasheet logic through testing, not guesswork.

Here’s how engineering teams uncover the real constraints.

Hidden Condition #1: PCB Layout Dependencies

A chipset may “support PCIe Gen4,” but only if:

• Differential pair length matches vendor reference

• Impedance kept within ±10%

• Specific via types used (back-drill vs no-back-drill)

If your board deviates → Fail.

Hidden Condition #2: Power Delivery Margins

Datasheet says:

CPU Vcore operates at 1.0V ± 5%

In reality:

• Sudden AVX load causes microsecond-scale droop

• VRM transient response determines stability

• Different inductors/caps change ripple shape

Most instability is not voltage range — it’s transient behavior (not in datasheet).

Hidden Condition #3: DRAM SPD + BIOS Interaction

Datasheets list JEDEC support.

Real world failures come from:

• Vendor-specific SPD timing tables

• BIOS auto-training bugs

• PMIC behavior on DDR5

Memory compatibility charts exist because datasheets alone cannot guarantee training success.

Hidden Condition #4: PCIe Lane Sharing

Datasheet states:

“M.2 slot supports PCIe x4.”

But your platform may include:

• GPU on x16 root complex

• NIC on the same CPU lanes

• SSD on chipset lanes

• USB/Ethernet controllers sharing DMI bandwidth

Datasheets don’t mention these practical constraints—motherboard designs define them.

Hidden Condition #5: Firmware Interactions

Vendors don’t document:

• NVMe APST dropouts

• Mellanox / Intel NIC firmware quirks

• PCIe ASPM latency conflicts

• Secure Boot + PXE cross-behaviors

• AGESA bugs

These are discovered only through field failures and pre-validation labs.

4. Why System Integrators Must Go Beyond the Datasheet

Relying solely on datasheets leads to:

• Random reboots

• Memory training failures

• NVMe dropouts

• PCIe throttling

• NIC resets

• Virtualization instability

White-label brands pay the price—not the chip vendor.

This is why companies that ship servers in volume rely on full-configuration compatibility testing, not vendor documents.

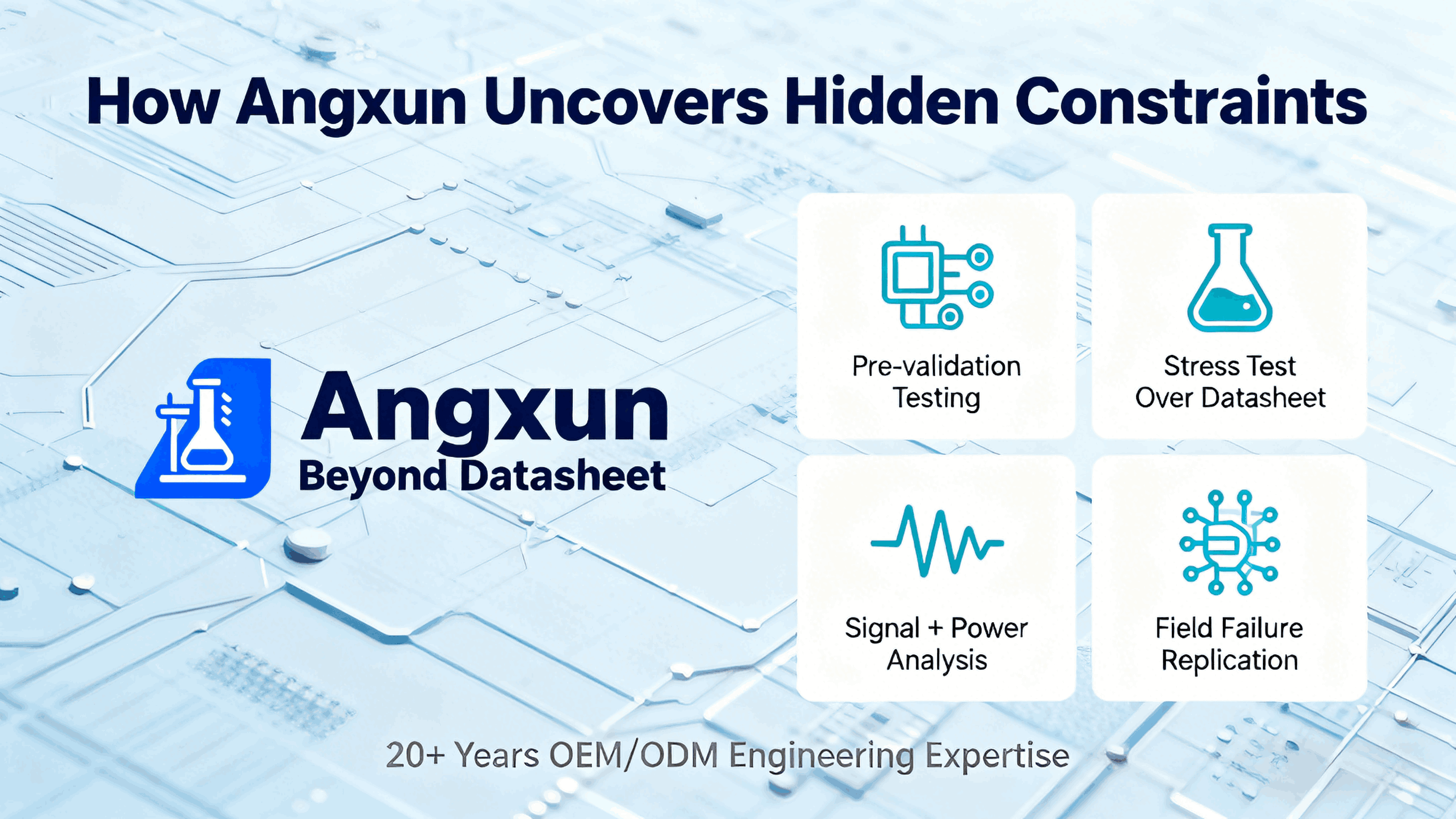

5. How Angxun Identifies the Real Failure Reasons

As a motherboard OEM with 20+ years of R&D and mass production experience, Angxun identifies failure causes through:

✔ Pre-validation of real-world hardware combinations

(CPU stepping, DRAM vendor mix, SSD, NIC, GPU…)

✔ Stress tests that exceed datasheet conditions

(thermal, load, power, timing margin, PCIe noise)

✔ Microcode/BIOS correlation testing

(using multiple AGESA / ME / PXE / NVMe firmware versions)

✔ Signal integrity + power analysis

(beyond datasheet equations)

✔ Field failure replication

(based on system integrator feedback)

This engineering-first approach exposes hidden conditions that datasheets never describe.

6. Conclusion: Datasheets Are the Starting Point — Not the Truth

Datasheets are essential for understanding capabilities.

But they are not diagnostic tools, nor do they represent real-world behavior.

To build stable hardware in 2025 and beyond, system designers must rely on:

• Practical testing

• Cross-component compatibility validation

• Understanding of electrical & firmware interactions

• Experienced ODM/OEM engineering teams

This is why leading white-label brands choose Shenzhen Angxun Technology as a long-term partner—because datasheets don’t tell the whole story, but our validation process does.
