Model:AXAK1 Mini PC
CPU:Intel N95
core:4 cores and 4 threads
power wastage:15W
GPU:Intel UHD Graphics 4096 x 2160@60Hz
Memory:SO-DIMM DDR4 8GB/16GB
Storage:M.2 2280 sata&NVME ×1 128GB/256GB/512GB/1TB/2TB
TPM:Supports TPM 2.0
Multi-screen:Support HDMI x2 two-screen display under the system
WIFI:IEEE 802.11 a, b/g, n, ac,ax (wifi5/6)
Bluetoot:Support Bluetoot 4.2/5.2
USB:USB2.0*2 USB3.0*2
Power Supply:Input 100~240V 50/60Hz Output 12V/2.5A DC Jack 5.5*2.1mm
Dimension:128*128*51.5mm
Weight:Net weight 386g, plus packing 757g

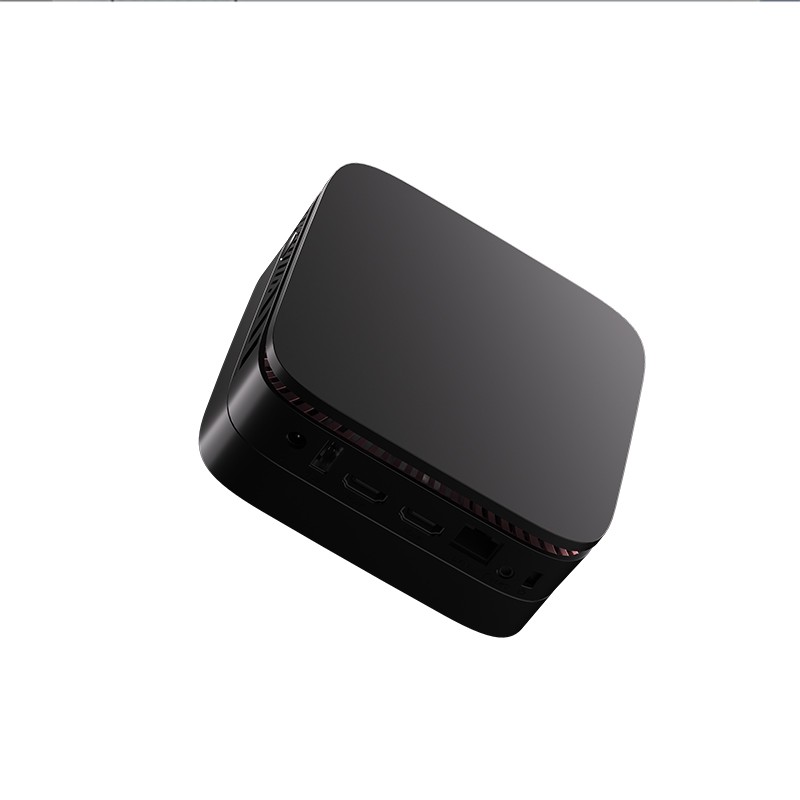

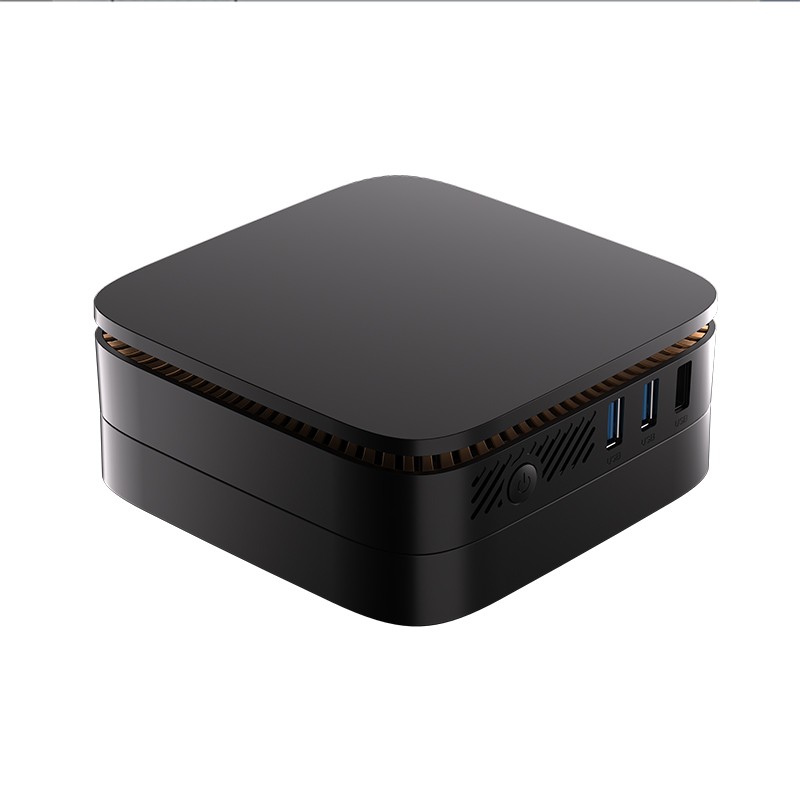

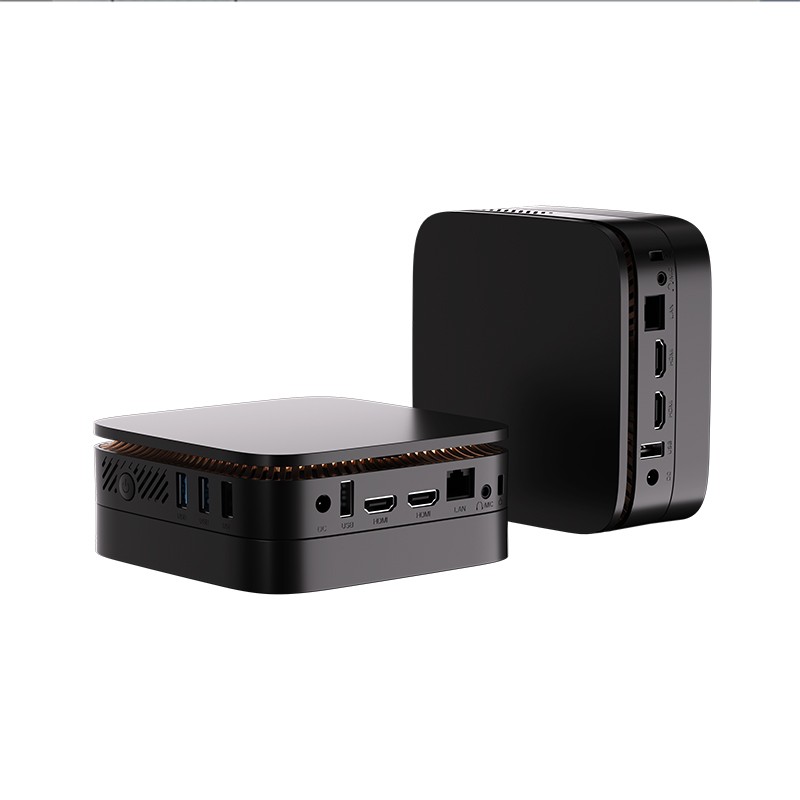

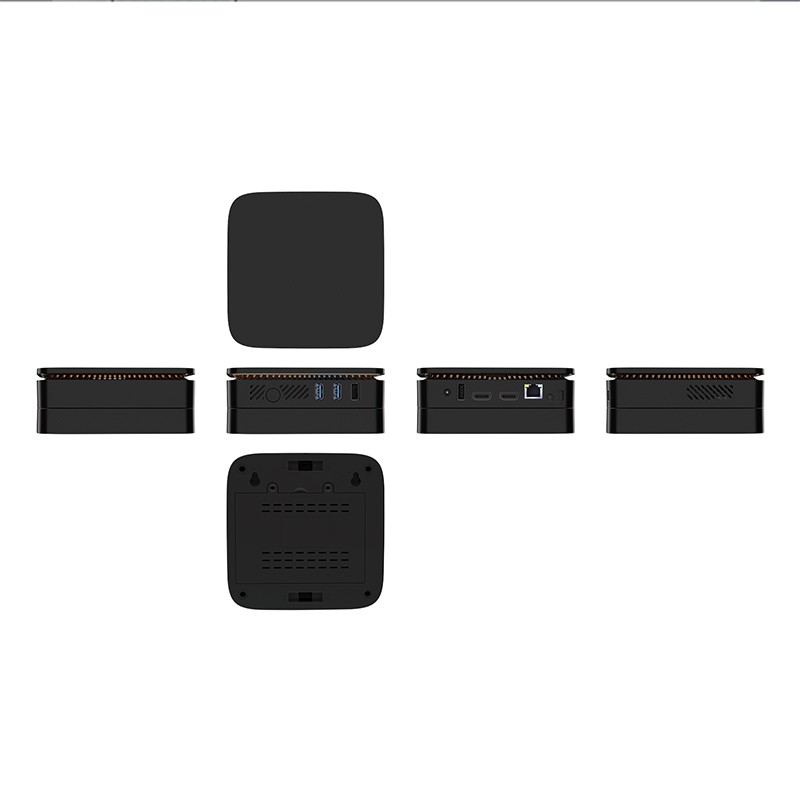

Product Appearance | ||
Type | Spec. | Standard Configuration |
Product | Product Type | Mini pc |
Special | / | |
Dimension | 128*128*51.5mm | |
Case Material | plastics | |
Weight | Net weight 386g, plus packing 757g | |
System Hardware Configuration | ||
Type | Spec. | Standard Configuration |
CPU | Model | Alder lake-N N95 |
manufacturing process | Intel 7 10nm | |
core | 4 cores and 4 threads | |
cache | 6 MB Intel® Smart Cache | |
Maximum speed | 3.40 Ghz | |
power wastage | 15W | |
GPU | Model | Intel® UHD Graphics |
core | / | |
speed | 750 MHz | |
resolution | 4096 x 2160@60Hz | |
Memory | Model | SO-DIMM DDR4 x 1 |
speed | DDR4 3200 MT/s | |
Capacity | Up to 16GB | |
Storage | SSD Capacity | SSD(Up to 2TB) |
SSD Type | M.2 2280 sata&NVME ×1 | |

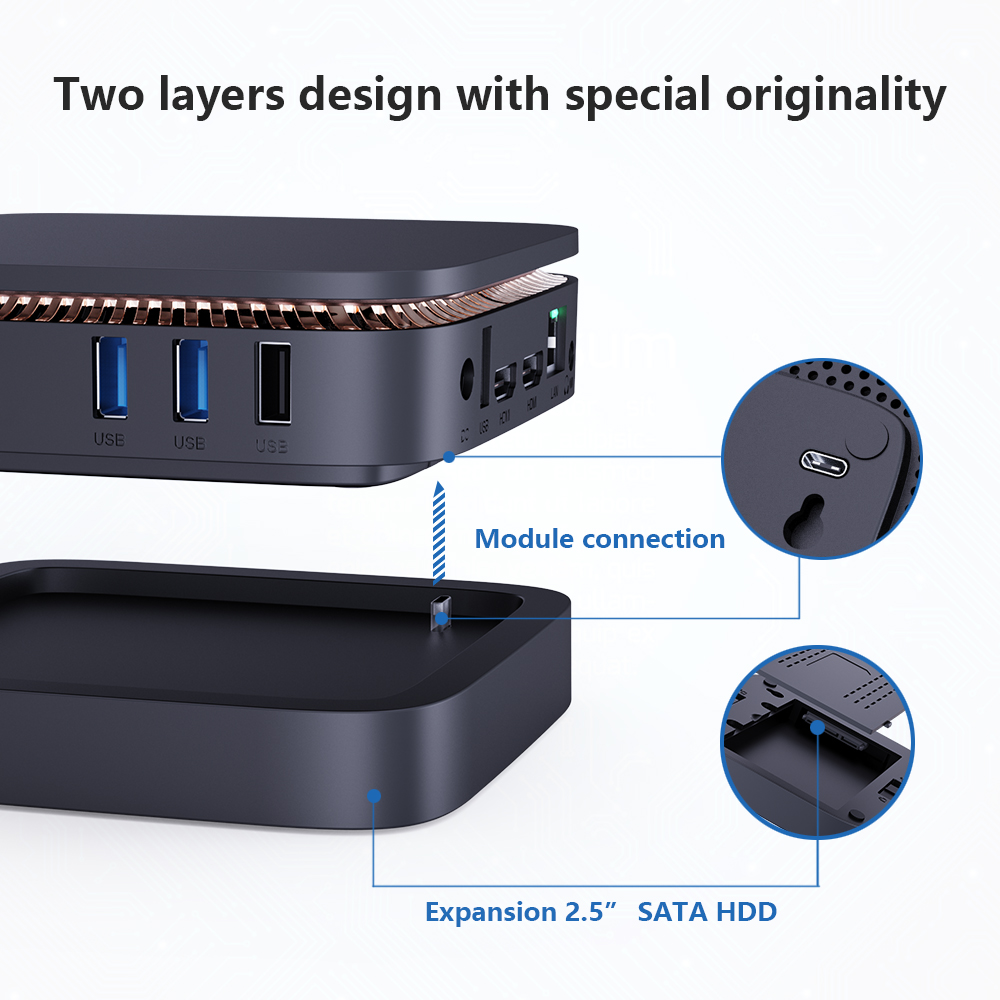

2.5 inch HHD | 1 × SATA Gen3 Port | |
TF card | No | |
RTC | BIOS Support | Real-time clock, timed power-up |
power-on | BIOS Support | Supports automatic power-on after power-on |
diskless network | BIOS Support | Support uefi diskless boot |
TPM | CPU Integrated TPM | Supports TPM 2.0 |

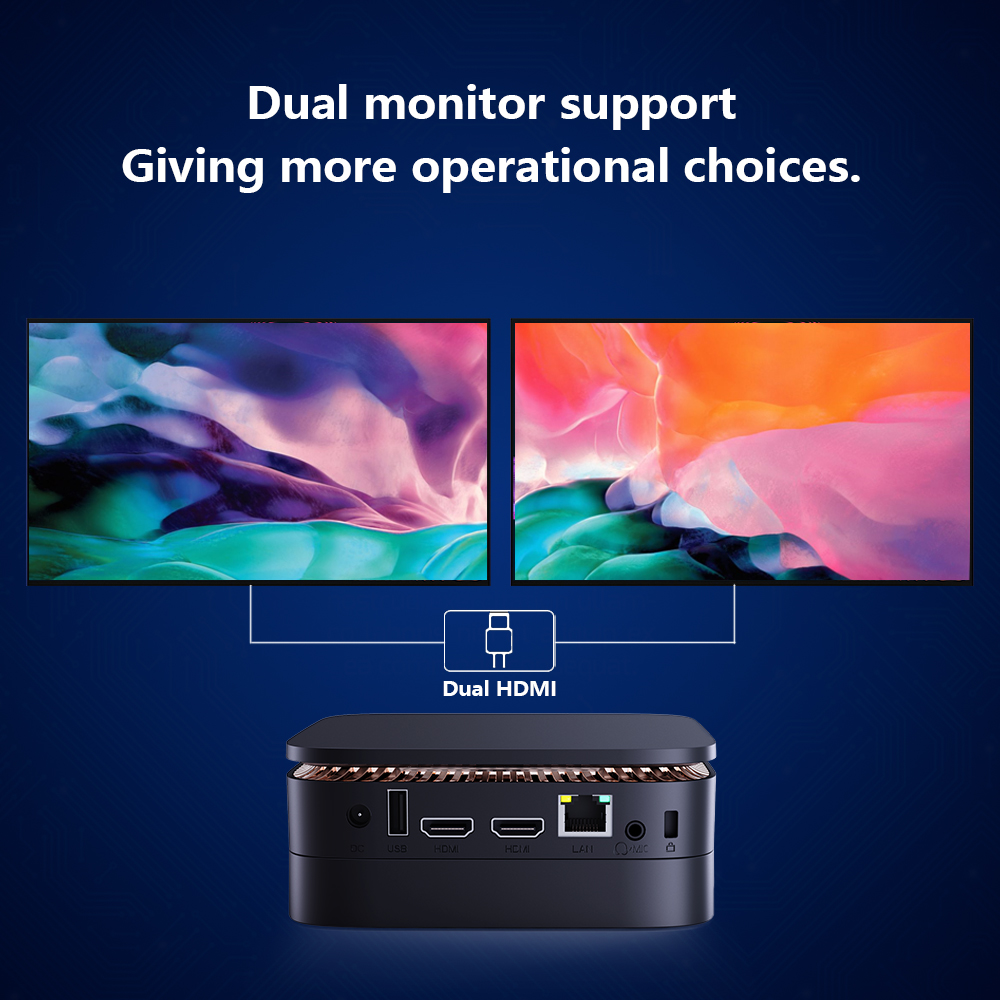

multi-screen | video output | Support HDMI x2 two-screen display under the system |
LED | status indicator | Power on light is white, red is sleep light |
Internet Connection | ||
Type | Spec. | Standard Configuration |
WIFI | Model | Onboard |
protocols | IEEE 802.11 a, b/g, n, ac,ax (wifi5/6) | |
Bluetooth | Model | USB |
protocols | Support Bluetooth4.2/5.2 | |
3G | built-in | NO |
4G | built-in | NO |
Ethernet | LAN1 | 10M/100M/1000M Adaptive |
LAN2 | NO | |

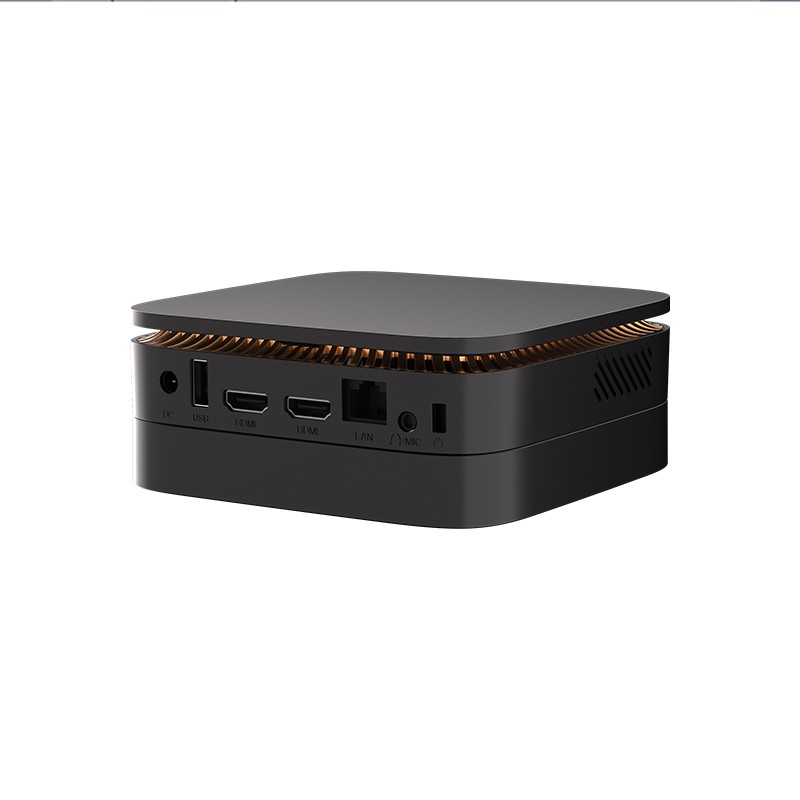

interface | ||
Type | Spec. | Standard Configuration |
USB | USB2.0 | USB2.0 Type-A x 2 480Mbps |
USB | USB2.0 Expansion | No |
USB | USB3.0 | USB3.0 Type-A x 2 5Gbps |
USB | USB3.0 Expansion | No |
TF | Expanded ExterNol Storage | No |
HDMI | video output | HDMI 2.0 x 2 4096 x 2160@60Hz |
DP | 4K audio and video output | No |
VGA | video output | No |
COM | serial port | No |
RJ45 | Gigabit Ethernet | x 1 |
LVDS | screen interface | No |
Backlight Voltage | No | |
Type C | data transmission | No |
panel switch | Power Button | No |
DC IN | Power Supply Input | DC Jack x1 5.5/2.1mm |
Power Supply Input | No | |
Audio-in/out | Audio-out | No |
Audio-in | No | |
Audio-in/out | 3.5mm Phone Jack x1 (2-in-1 connector) | |
speaker output | No | |
UART serial port | serial output | No |
serial output | No | |
AntenNo | FPC AntenNo 1 | WiFi 2.4+5G+BT x1 |
FPC AntenNo 2 | WIFI 5.0 | |
SIM | micro SIM | not support |
Software Configuration | ||
Type | Spec. | Standard Configuration |
OS | Version | Win11/Linux |
Environment | ||
Type | Spec. | Standard Configuration |
Environment | Working Temperature | 0~40℃ |
Memory Temperature | -20~60℃ | |
Humidity | 90% @ 40 °C (no condensation) | |
ΔT | MAX: 23 °C | |
Accessory | ||
Type | Spec. | Standard Configuration |
Power Supply | Desktop/Plug-in | Input 100~240V 50/60Hz Output 12V/2.5A DC Jack 5.5*2.1mm |
IR Remote Control | not support | |
VESA Mount | support |
