AXF2A Mini PC AMD Ryzen 7 7840hs WIFI Computer

AXF2A Mini PC AMD Ryzen 7 7840hs WIFI Computer

Model:AXF2A
CPU:AMD Ryzen™ 7 7840hs
Core:8 cores and 16 threads
Maximum speed:5.1 GHz
Power wastage:45W / 65W
GPU:AMD Radeon 780M 4096 x 2304 @ 60Hz
Memory:2*SODIMM DDR5
Storage:M.2 2280 NVME/SATA SSD Up to 2TB
TPM:Supports TPM 2.0
WIFI:IEEE 802.11 a, b/g, n, ac，ax (wifi5/6)
Bluetoot:Support Bluetoot 4.2/5.2
USB:USB3.2 Gen1 Type-A*4 5Gbps
RJ45:RJ45 1000Mbps *1
Desktop/Plug-in:Input 100~240V 50/60Hz Output 19V/6.3A DC Jack 5.5*2.1mm
Dimension:147x147x52mm

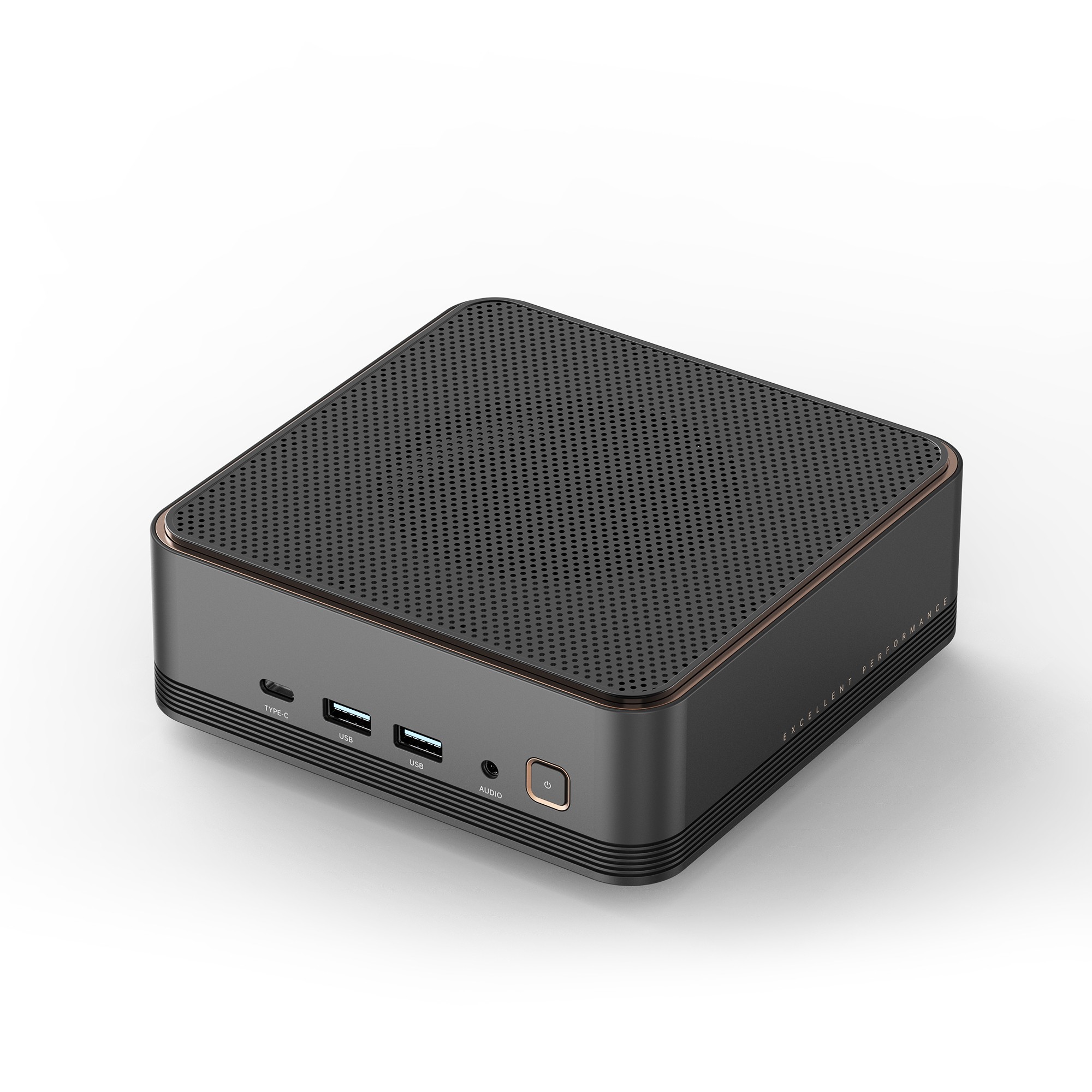

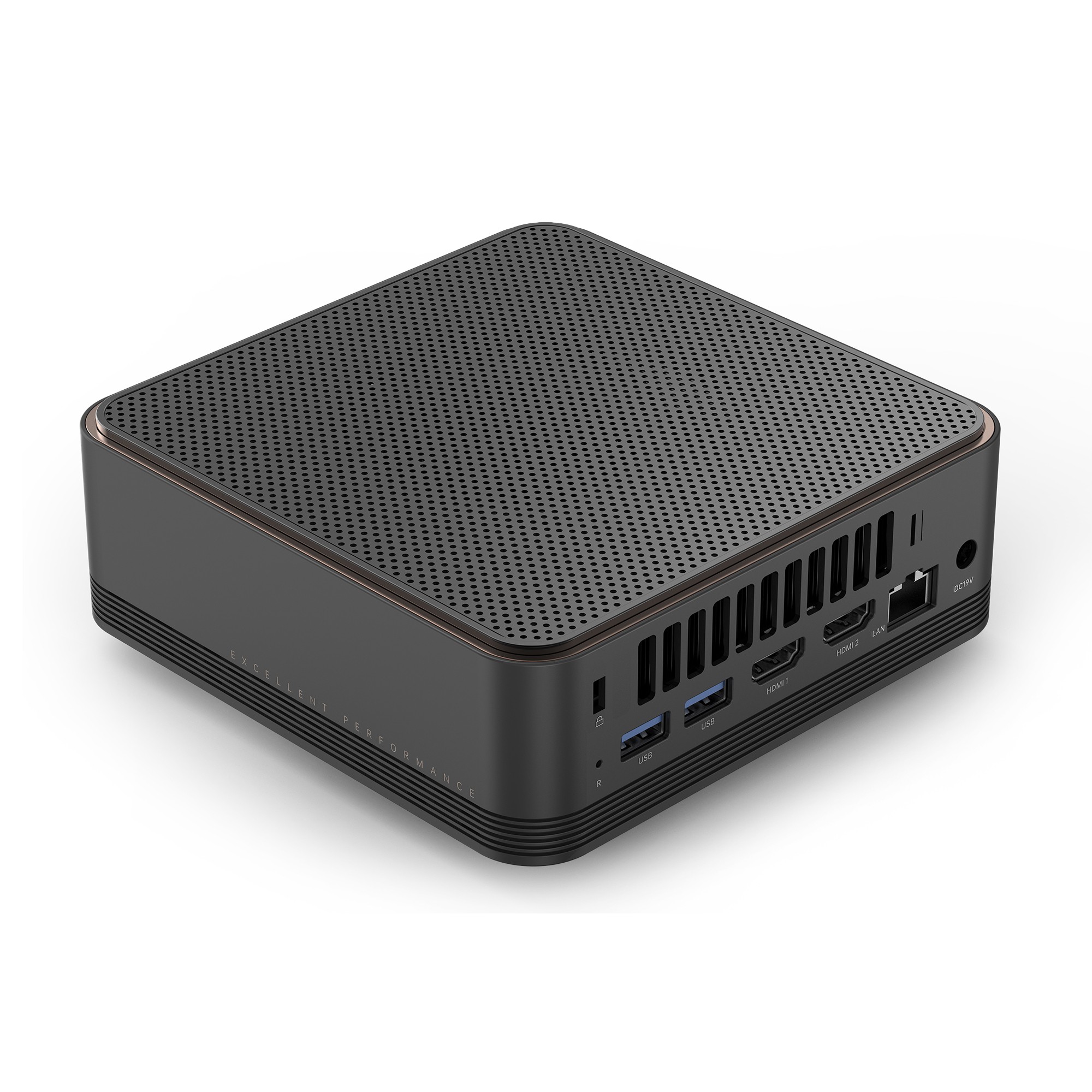

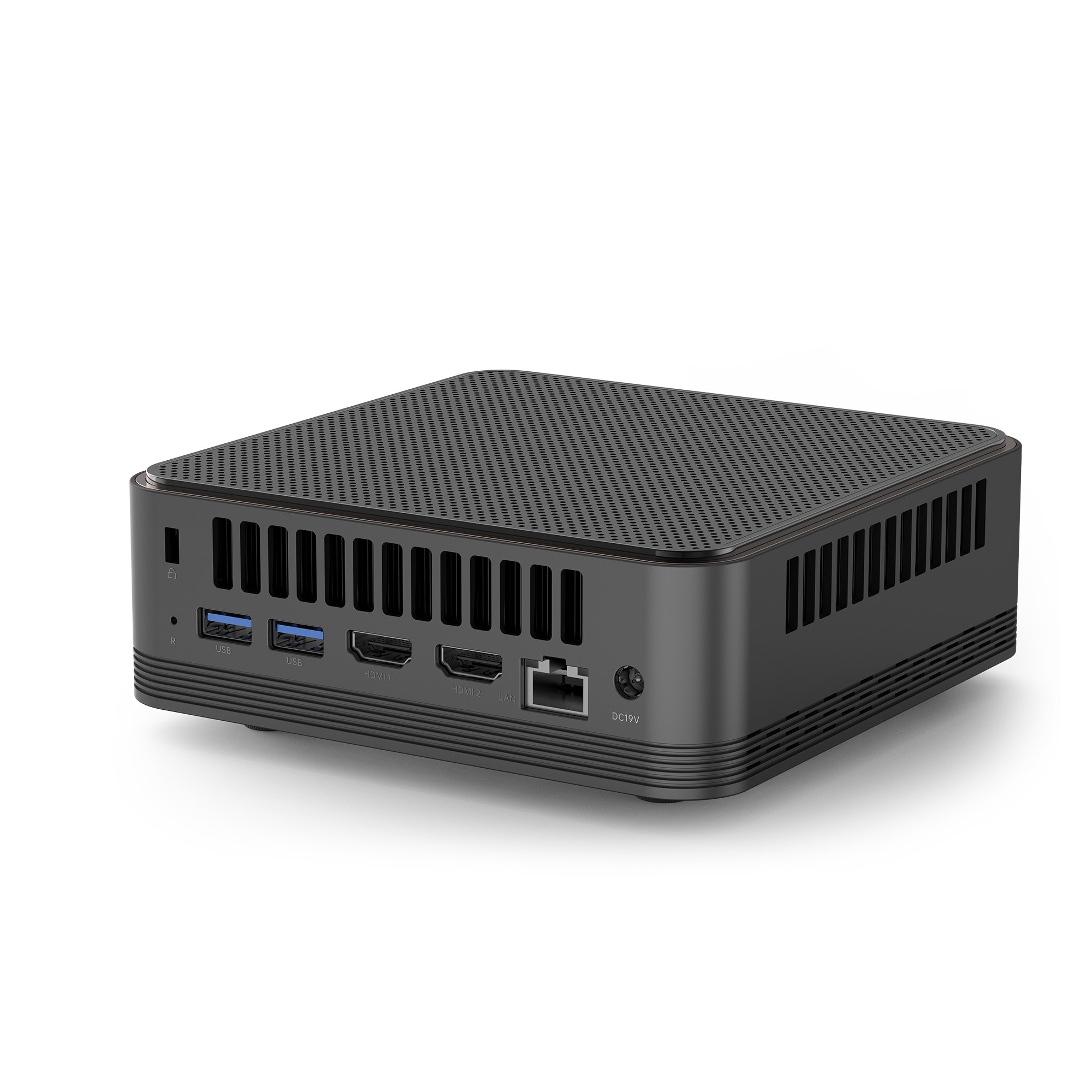

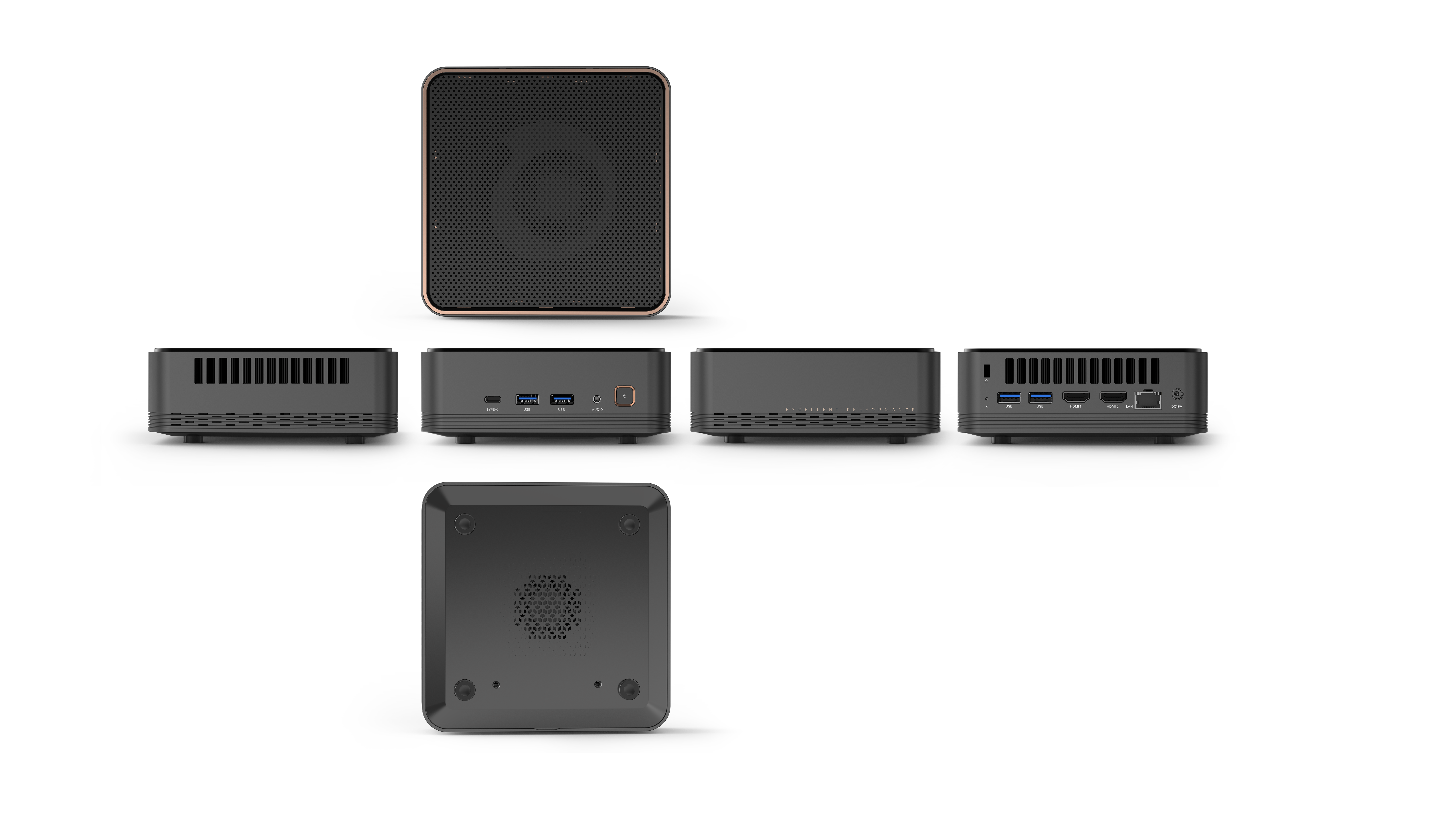

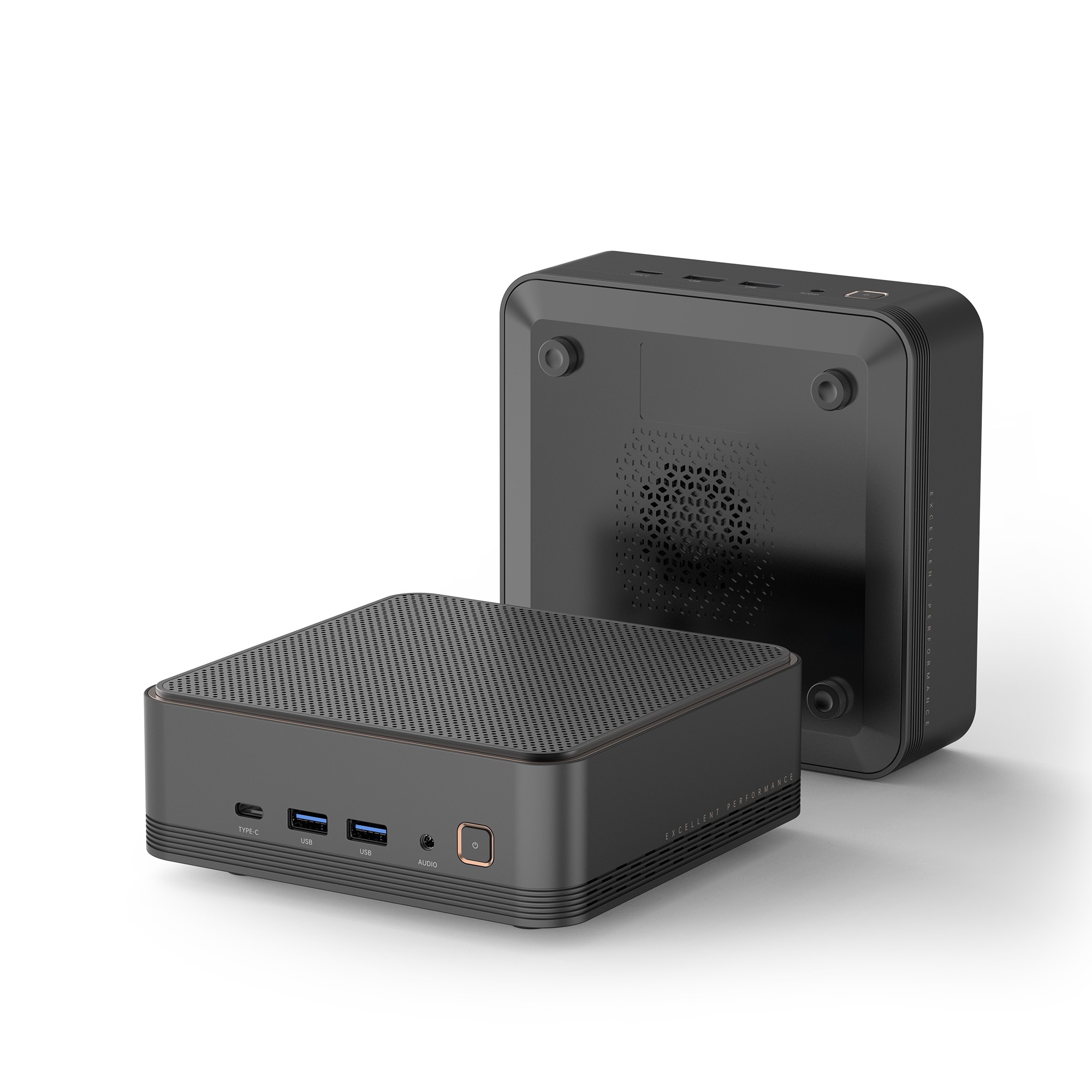

Product Appearance
Type	Spec.	Standard Configuration
Product	Product Type	MINI PC
	Special	/
	Dimension	147x147x52mm
	Case Material	Plastic + Hardware
	Weight
System Hardware Configuration
Type	Spec.	Standard Configuration
CPU	Model	AMD Ryzen™ 7 7840hs
	manufacturing process	TSMC 4nm FinFET
	core	8 cores and 16 threads
	cache	L1 cache 512KB L2 cache 8MB L3 cache 16MB
	Maximum speed	5.1 GHz
	power wastage	45W / 65W
GPU	Model	AMD Radeon™ 780M
	core	12
	speed	2700 MHz
	resolution	4096 x 2304 @ 60Hz
Memory	Model	2*SODIMM DDR5
	speed	Up to 5600
	Capacity	Up to 256GB
Storage	SSD Capacity	SSD Up to 2TB gen4*4
	SSD Type	M.2 2280 NVME/SATA Adaptive x1
	2.5 inch HHD	Support
	TF card	NO
RTC	BIOS Support	Real-time clock, timed power-up
power-on	BIOS Support	Supports automatic power-on after power-on
diskless network	BIOS Support	Support uefi diskless boot
TPM	CPU Integrated TPM	Supports TPM 2.0
multi-screen	video output	Support HDMI2+type_c1 under the system fo r three-screen simultaneous display
LED	status indicator	Button light: white
Internet Connection
Type	Spec.	Standard Configuration
WIFI	Model	M.2 E_Key
WIFI	protocols	IEEE 802.11 a, b/g, n, ac，ax (wifi5/6)
Bluetooth	Model	USB
Bluetooth	protocols	Support Bluetooth4.2/5.2
3G	built-in	NO
4G	built-in	NO
Ethernet	LAN1	10M/100M/1000M Adaptive
interface
Type	Spec.	Standard Configuration
USB	USB2.0	NA
USB	USB3.0	USB3.2 Gen1 Type-A*4 5Gbps
TF	Expanded External Storage	NO
HDMI	video output	HDMI 2.0 x2 7680x4320 @ 60Hz
DP	4K audio and video output	NA
VGA	video output	NA
RJ45	Gigabit Ethernet	RJ45 1000Mbps *1
Type C	data transmission	Type_C *1 (full function) 10Gbps
POWER	Power Button	x1
DC IN	Power Supply Input	5.5/2.1mm DC Jack x1
Audio-in/out	Audio-in/out	3.5mm Phone Jack x1 （2-in-1 connector）
Antenna1	FPC Antenna	WiFi 2.4+5G+BT x1
Antenna2	FPC Antenna	WIFI 5.0
SIM	micro SIM	not support
Software Configuration
Type	Spec.	Standard Configuration
OS	Version	Win11/Linux
Environment
Type	Spec.	Standard Configuration
Environment	Working Temperature	0~40℃
	Memory Temperature	-20~60℃
	Humidity	90% @ 40 °C (no condensation)

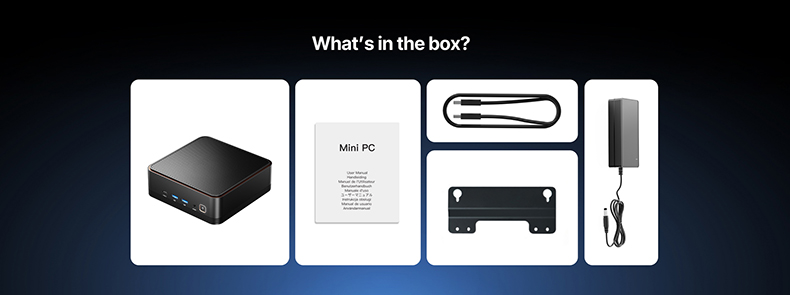

Accessory
Type	Spec.	Standard Configuration
Power Supply	Desktop/Plug-in	Input 100~240V 50/60Hz Output 19V/6.3A DC Jack 5.5*2.1mm
IR Remote Control	not support
VESA Mount	support
