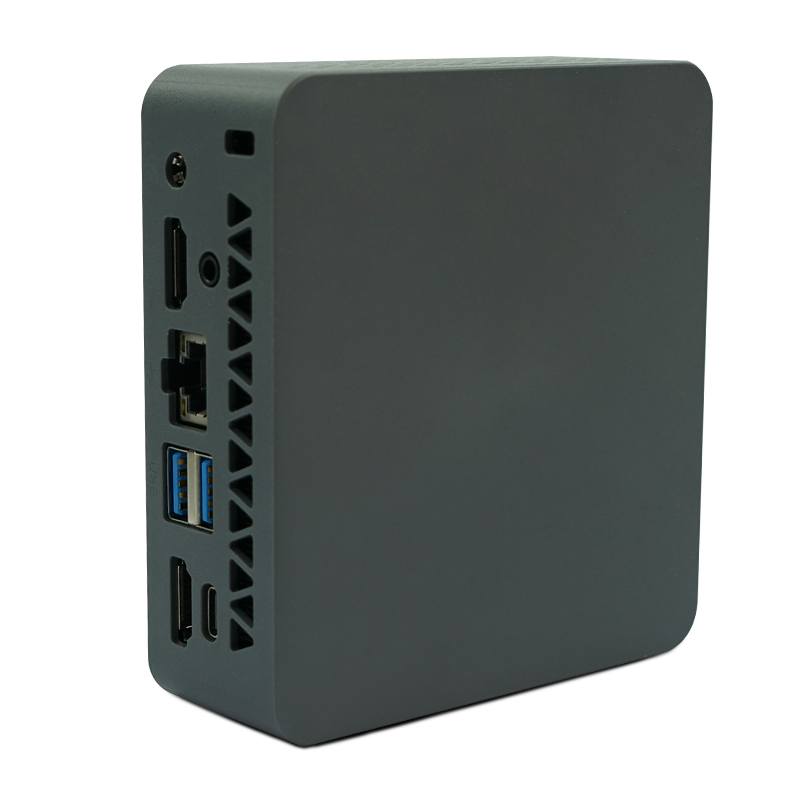

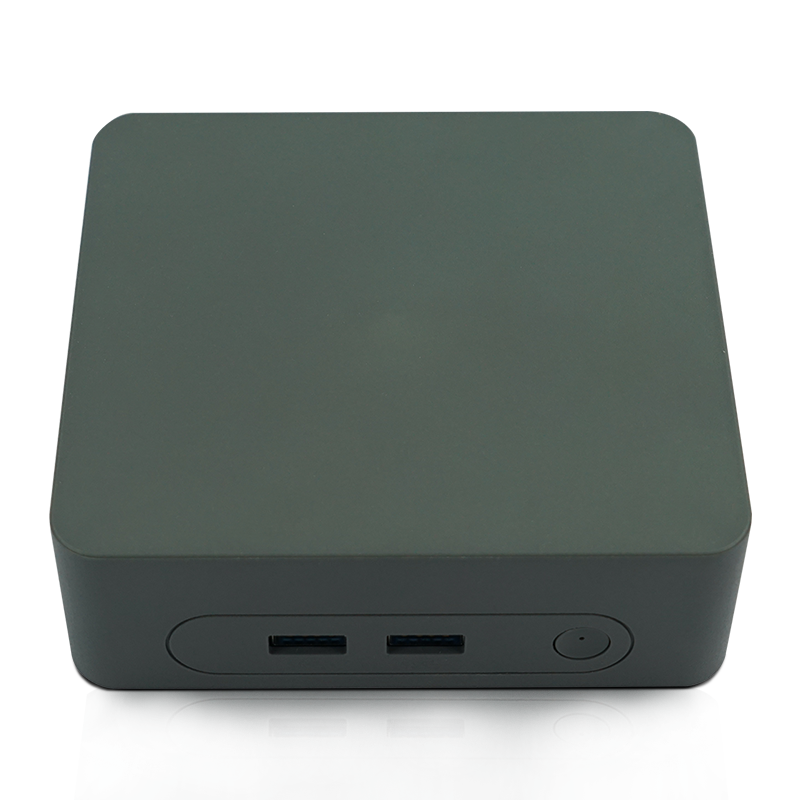

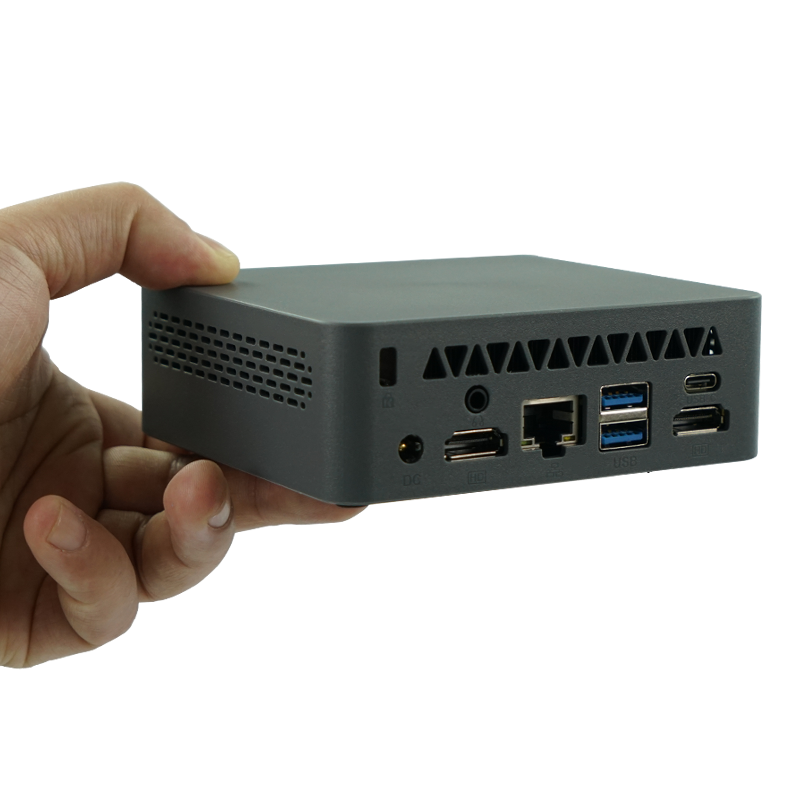

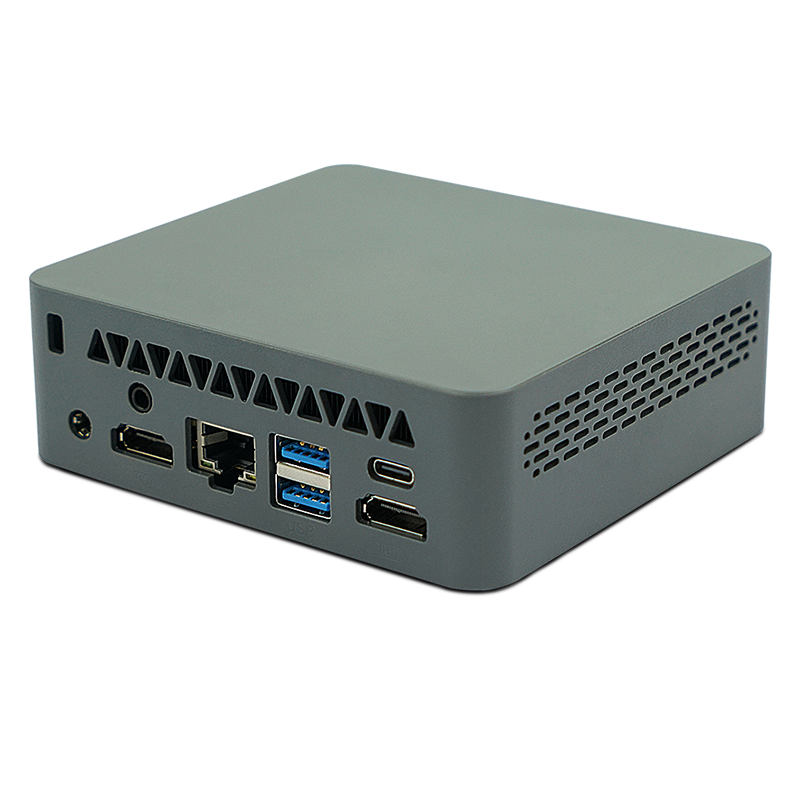

AXN100 Mini PC Intel N100 WIFI Computer

Model:AXN100
CPU:Intel Alder-N Lake N100 Up to 3.4GHz
GPU:Intel UHD Graphics up to 750 MHz
RAM:DDR4 3200 SO-DIMM*1,up to 16GB
Storage:M.2 2280 SSD PCIe Gen3 x2 up to 2TB
Wi-Fi:8821CE/2.4G/5G,WiFi 802.11ac/a/b/g/n
Bluetoot:8821CE/BT 4.0
USB:USB3.2 *4
Type-C:Type-C (USB 2.0)*1
Power input:DC IN, 12V/3A
Size:114*105*38MM

EMAIL

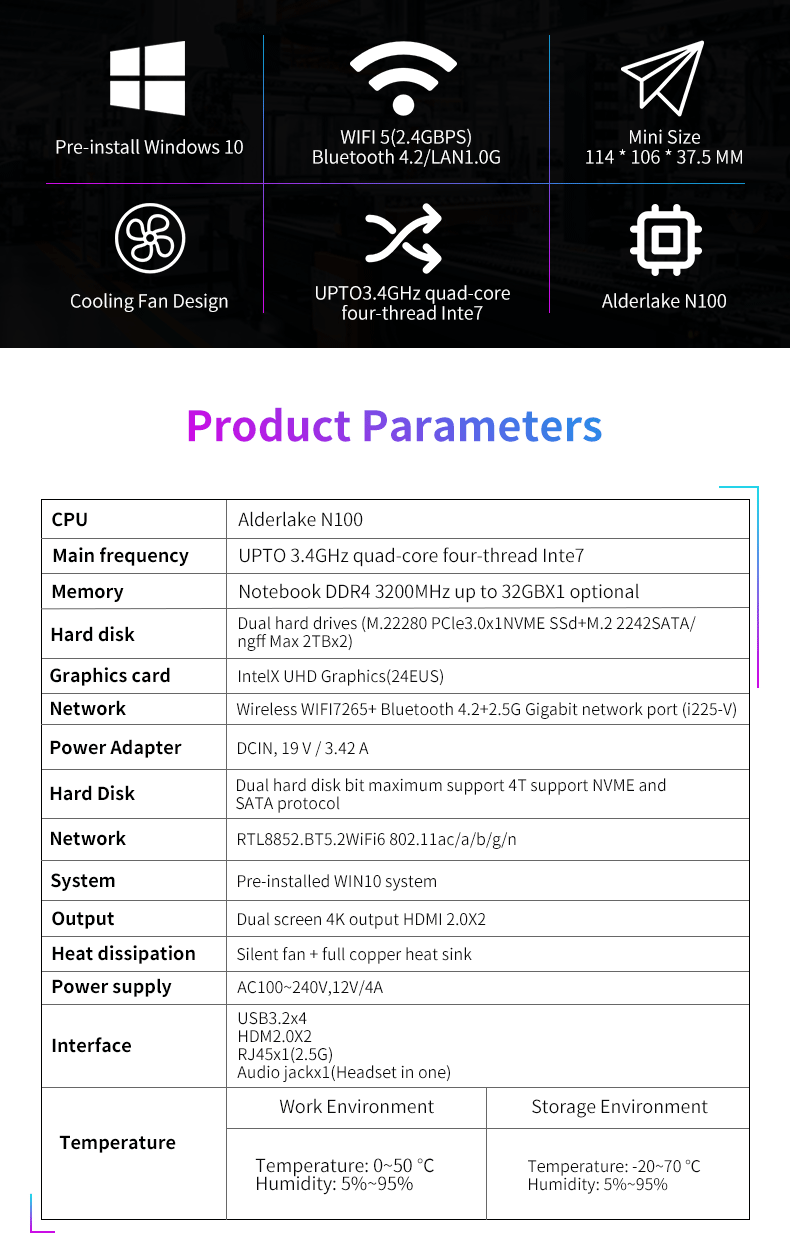

Hardware Configuration
ItemsDetailsDescriptions
Product FormFormMiniPC
CPUTypeIntel Alder-N Lake N100 Up to 3.4GHz
GPUIntegratedIntel® UHD Graphics up to 750 MHz
RAMSO-DIMM*1DDR4 3200 SO-DIMM*1,up to 16GB
StorageM.2 SATAM.2 2280 SSD SATA3  up to 1TB
M.2 PCIEM.2 2280 SSD PCIe Gen3 x2 up to 2TB
EthernetBuilt-in8111H, RJ45 port, 1000M/100M/10M
Wi-FiBuilt-in8821CE/2.4G/5G,WiFi 802.11ac/a/b/g/n
BluetoothBuilt-in8821CE/BT 4.0

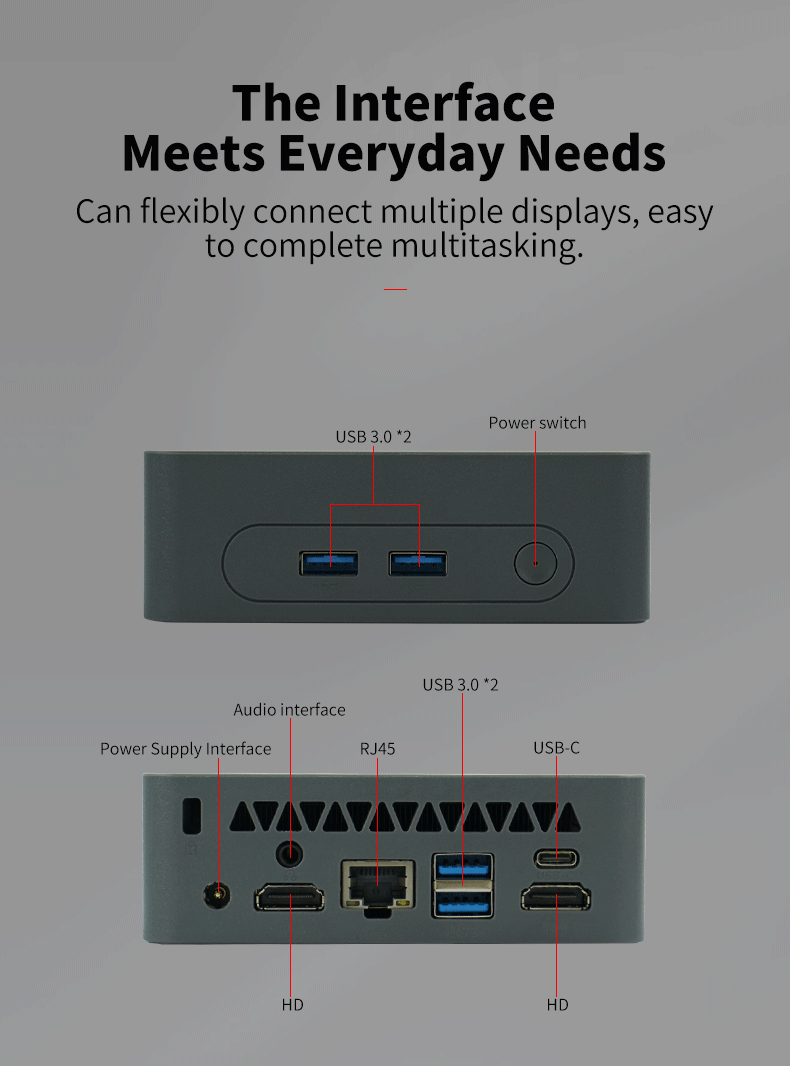

Ports
ItemsDetailsDescriptions
LED indicatorPower/Lan/Power(white)/Lan(Green/Orange)
ButtonPhysical buttonsPower button
USB PortData transmitUSB3.2 *4
Type-CFully functionalType-C (USB 2.0)*1
EthernetBuilt-inRJ45 port*1
FanSmart FanSupport
Earphone JackAudio output∮3.5mm,CTIA
HDMIHD Video outputHDMI 2.0b*2(Dual-Display utput4096x2160@60Hz)
AdapterPower inputDC IN, 12V/3A
System
ItemsDetailsDescriptions
OS
Windows 10 /Windows 11 /Linux
Language
multi-language

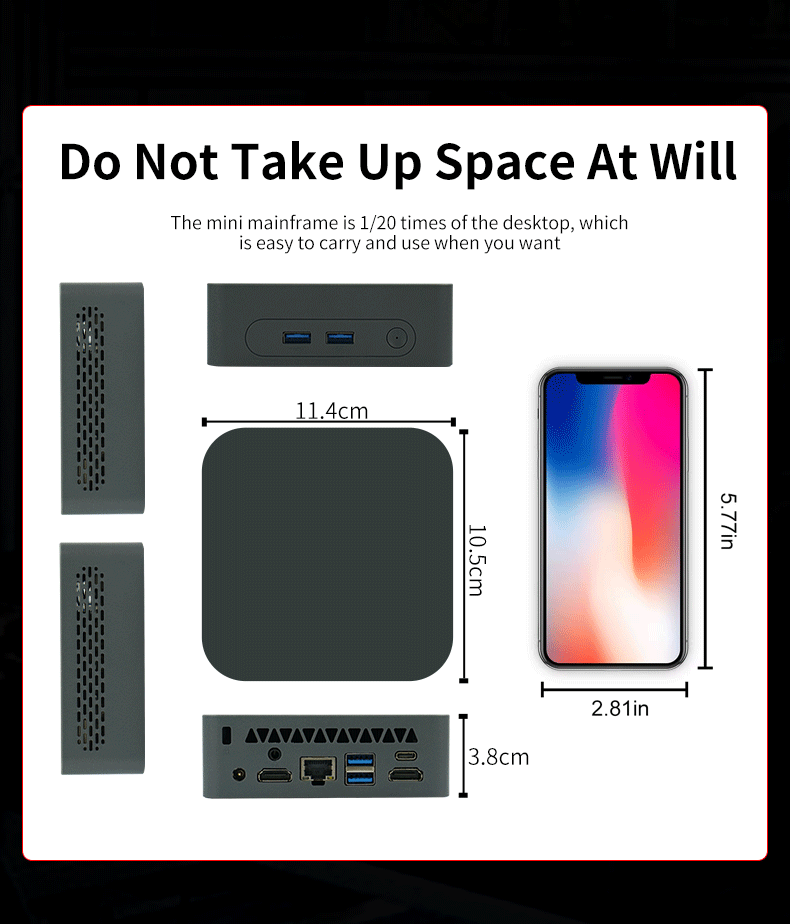

ID(114*105*38mm)
详情MINI-PC塑料灰_01.png详情MINI-PC塑料灰_02.png详情MINI-PC塑料灰_03.png详情MINI-PC塑料灰_05.png详情MINI-PC塑料灰_08.png

Features:

1. All IML-In mould label are safe and poison free with the international standard;

2. Multiple color patterns can be easily finished in one process;

3. You can add high values to the products to get vivid patterns and colors;

4. Strong adhesion and wear resistance after transfer printing, it can also increase the value of the product and strengthen the competitive ability of the market;

5. Widely used in food industry, paint industry, household industry etc.



Shenzhen Anxun Technology Co., Ltd. is one of the leading computer manufacturers in China, located in Shenzhen, China.

Our factory was established in 2003 and has a history of 20 years. Since its establishment,

we have focused on the production and research and development of computer motherboards,

graphics cards, displays, solid-state drives, all-in-one computers, laptops, etc., with a history of 20 years.

Office display


The company has a factory area of over 10000 square meters, over 300 employees, and over 40 engineers.

Its products have been exported from the Anxun factory to countries and regions such as the United States, South America, and Europe,

 and have passed complete quality management systems and environmental certifications such as ISO9001. Qualified to undertake for large brands and orders.

We rely on our rich R&D and production experience, mature quality management system, and mature and stable supply chain to provide customers with integrated products.


Customer group photo



Work presentation



Workflow



Product advantages:

  • Well-cooling system with Good thermal material aluminum base for motherboard

  • All-solid electric capacitor for motherboard

  • PCB Copper plating technology for Motherboard

  • Independent power supply designed for Motherboard CPU

  • Zero burning protection circuit for Motherboard

  • Dual safety device stabilize voltage and current for load data uniformly

Company advantages

  • 23 YEARS motherboard FACTORY

  • ECO-ENVIRONMENT MATERIAL

  • CE ROHS FCC ISO CERTIFICATES

  • 50+ R8D DESIGNER TEAM

  • FAST DELIVERY SHIPPING

  • GUARAMTEED AFTER-SALE SERVICE
