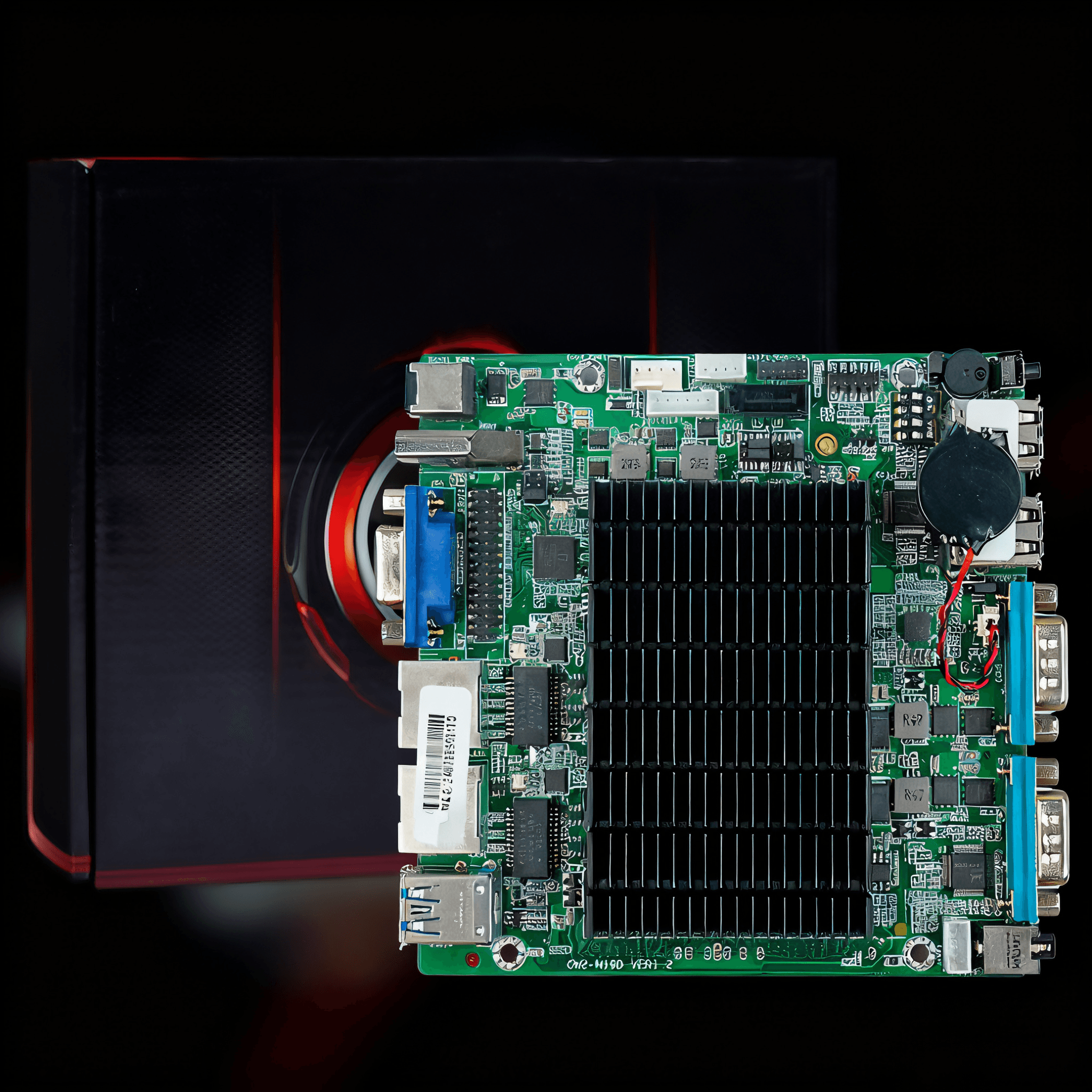

Industrial-Grade J1900 Mini-ITX Motherboard: Engineered for Reliability in Demanding Applications

The J1900 Mini-ITX motherboard represents a robust computing solution designed specifically for industrial applications where reliability, extended product lifecycle, and stable performance are paramount. Built around Intel's Bay Trail-M/D platform, this motherboard delivers consistent computing power while maintaining exceptionally low power consumption and thermal output.

Technical Specifications & Engineering Excellence

Core Computing Platform

• Processor: Integrated Intel Celeron J1900 Quad-Core SoC

• Operating Frequency: 2.0GHz (burst up to 2.42GHz)

• Thermal Design Power: 10W

• 64-bit computing architecture

• Chipset: Integrated Intel Bay Trail-M/D platform

• Memory Configuration

• Single DDR3L DIMM slot

• Maximum Capacity: 8GB

• Memory Frequency: 1333MHz

• Single-channel architecture optimized for stability

Connectivity & Expansion

• Storage Interfaces

• SATA II interface for 2.5"//3.5" drive connectivity

• Support for industrial-grade SSDs and HDDs

• USB Connectivity

• USB 3.0 ports: High-speed peripheral connectivity

• USB 2.0 ports: Legacy device compatibility

• Network Interface

• Gigabit Ethernet controller

• Reliable packet processing for industrial networks

Form Factor & Physical Design

• Dimensions: 120mm × 120mm (Mini-ITX)

• Construction: Industrial-grade PCB with 2oz copper layers

• Component Selection: 100% solid capacitors

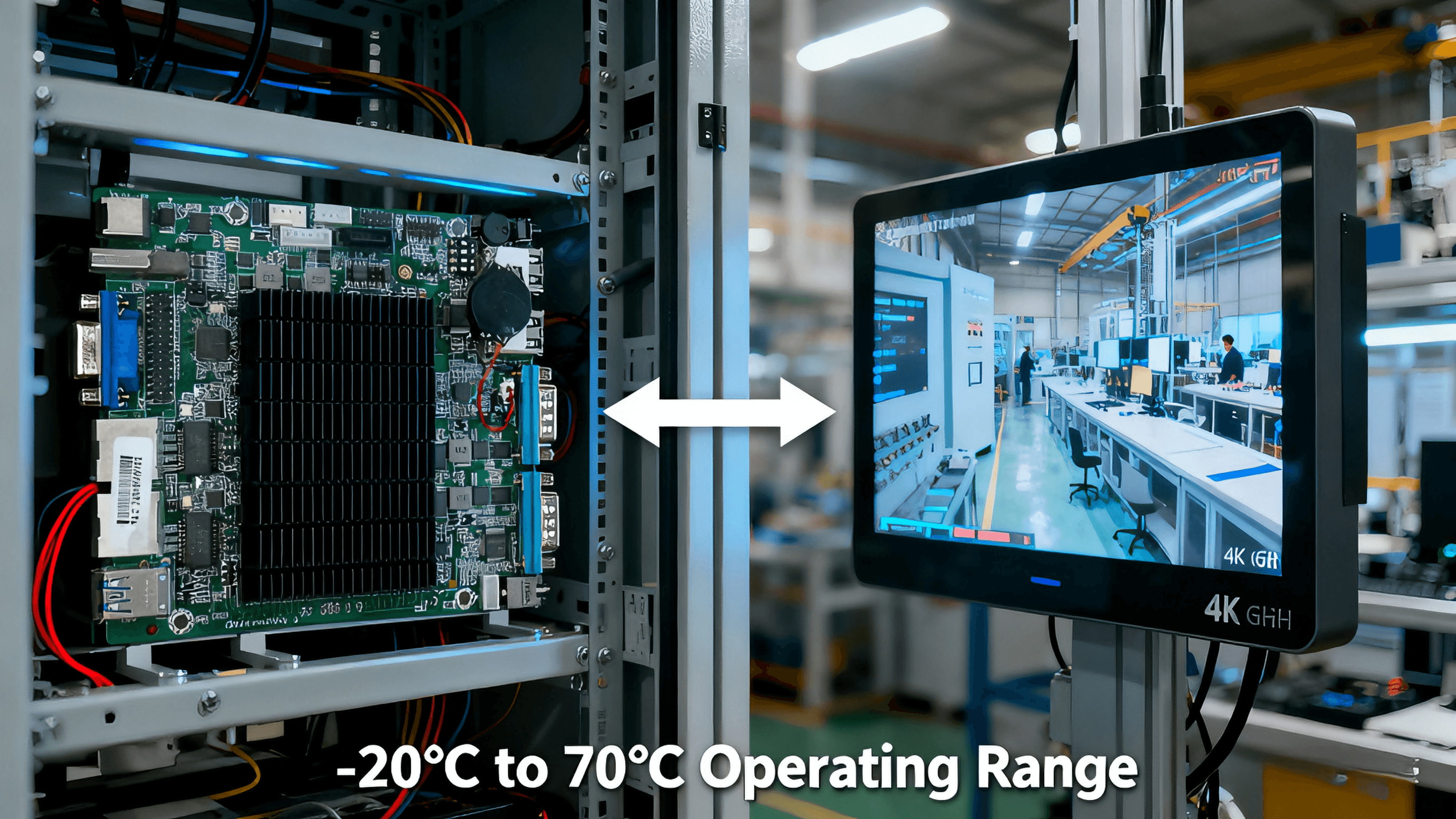

• Operating Temperature: -20°C to 70°C (extended range available)

Quality Assurance & Reliability

Manufacturing Standards

Every J1900 motherboard undergoes comprehensive validation:

• 168-hour continuous burn-in testing

• Thermal cycle testing (-20°C to 70°C, 50 cycles)

• Vibration and shock resistance validation

• Extended load testing at 100% CPU utilization

Component Reliability

• Memory Support: Validated DDR3L compatibility list available

• Power Design: Optimized VRM with over-current protection

• ESD Protection: 8kV contact discharge protection on all I/O

Application Scenarios & Use Cases

Digital Signage & Kiosk Systems

• Stable operation for 24/7 digital signage deployments

• Hardware decoding for 4K video playback

• Compact form factor for space-constrained installations

Industrial Automation & Control

• Reliable operation in manufacturing environments

• Compatibility with industrial I/O expansion

• Extended temperature range support

Thin Client & Embedded Computing

• Consistent performance for remote desktop applications

• Low maintenance requirements

• Long-term component availability

Technical Support & Service

Documentation Availability

• Comprehensive technical reference manual

• Schematics and design documentation for OEM clients

Warranty & Service Terms

• Standard 12-month warranty

• Extended warranty options available

• RMA processing within 48 hours

• Technical support response within 4 business hours

Compatibility & Integration

Operating System Support

• Windows 10/11 IoT Enterprise

• Linux (Kernel 4.4+)

• Android 7.0+

• Custom RTOS implementations

Expansion Capabilities

• PCIe 2.0 x1 interface

• GPIO header for custom I/O

• LVDS display support

• COM ports (RS232/RS485)

Frequently Asked Questions

Q: What is the expected operational lifespan of this motherboard?

A: Based on accelerated life testing, the MTBF exceeds 80,000 hours (approximately 9 years) under typical operating conditions.

Q: Is this motherboard suitable for 24/7 operation?

A: Yes, the design incorporates features specifically for continuous operation, including enhanced power delivery and industrial-grade components.

Q: What memory modules are recommended for optimal performance?

A: We provide a validated memory compatibility list including modules from major manufacturers that have passed our rigorous testing protocols.

Q: Are custom BIOS configurations available for OEM clients?

A: Yes, we offer comprehensive customization services including custom BIOS development, boot logos, and hardware-level modifications.

Q: What cooling solution is required for this motherboard?

A: The low 10W TDP enables passive cooling in most environments. We offer compatible heatsink solutions for various deployment scenarios.

Ordering Information & Customization

Standard Configuration

• Base motherboard with standard I/O shield

• Standard BIOS with latest security updates

• Basic documentation package

OEM Services

• Custom BIOS development and branding

• Bulk packaging options

• Specialized testing and validation services

• White-label manufacturing support

Global Compliance & Certifications

• CE, FCC, RoHS compliant

• REACH environmental compliance

• Custom certification support available

This product is manufactured in our ISO 9001:2015 certified facility in Guangdong, China. All technical specifications are subject to verification and may be updated to reflect component availability and performance improvements. For the most current documentation and compatibility information, please consult our technical support team.
